Межсетевой экран FortiGate 900D

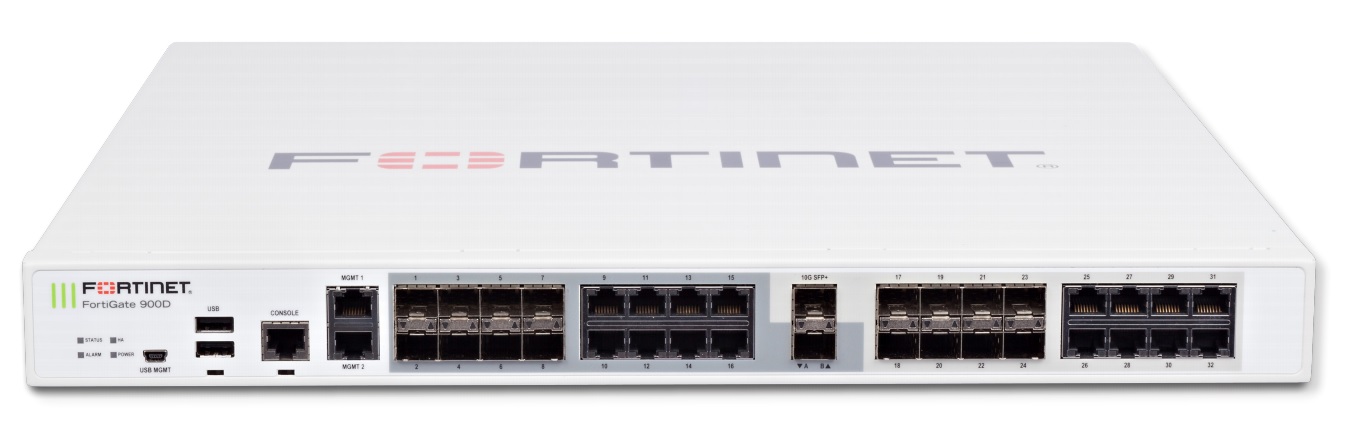

FortiGate 900D

Interfaces and Modules

Hardware Accelerated 10 GE SFP+ Slots

2

Hardware Accelerated GE SFP Slots

16

Hardware Accelerated GE RJ45 Ports

16

GE RJ45 Management / HA Ports

2

USB Ports (Client / Server)

1 / 2

Console Port

1

Onboard Storage

1x 256 GB SSD

Included Transceivers

0

System Performance and Capacity

IPv6 Firewall Throughput (1518 / 512 / 86 byte, UDP)

52 / 52 / 33 Gbps

Firewall Latency (64 byte, UDP)

3 μs

Firewall Throughput (Packet per Second)

49.5 Mpps

New Sessions/Second (TCP)

280,000

Firewall Policies

10,000

IPsec VPN Throughput (512 byte)

25 Gbps

Gateway-to-Gateway IPsec VPN Tunnels

2,000

Client-to-Gateway IPsec VPN Tunnels

50,000

SSL-VPN Throughput

3.6 Gbps

Concurrent SSL-VPN Users (Recommended Maximum, Tunnel Mode)

10,000

SSL Inspection Throughput (IPS, avg. HTTPS)

3.9 Gbps

Application Control Throughput (HTTP 64K)

10 Gbps

Maximum Number of FortiAPs (Total / Tunnel)

1024 / 512

Form Factor (supports EIA / non-EIA standards)

Rack Mount, 1 RU
