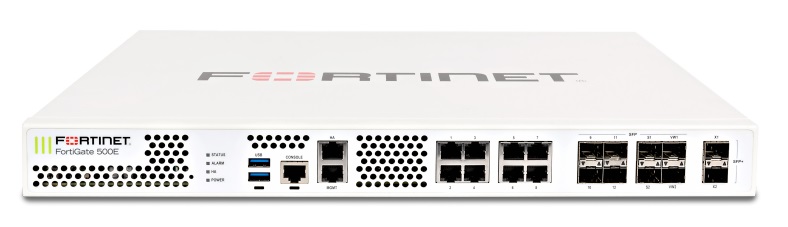

Межсетевой экран FortiGate 500E

FortiGate 500E

FortiGate 501E

Interfaces and Modules

10 GE SFP+ Slots

2

GE RJ45 Interfaces

8

GE SFP Slots

8

GE RJ45 Management Ports

2

USB Ports

2

RJ45 Console Port

1

Local Storage

нет

2x 240 GB SSD

Included Transceivers

2x SFP (SX 1 GE)

System Performance and Capacity

IPv6 Firewall Throughput (1518 / 512 / 64 byte, UDP)

36 / 36 / 22 Gbps

Firewall Latency (64 byte, UDP)

2 μs

Firewall Throughput (Packet per Second)

33 Mpps

New Sessions/Second (TCP)

300,000

Firewall Policies

10,000

IPsec VPN Throughput (512 byte)

20 Gbps

Gateway-to-Gateway IPsec VPN Tunnels

2,000

Client-to-Gateway IPsec VPN Tunnels

50,000

SSL-VPN Throughput

5 Gbps

Concurrent SSL-VPN Users (Recommended Maximum, Tunnel Mode)

10,000

SSL Inspection Throughput (IPS, avg. HTTPS)

5.7 Gbps

Application Control Throughput (HTTP 64K)

14 Gbps

Maximum Number of FortiAPs (Total / Tunnel)

512 / 256

Form Factor (supports EIA / non-EIA standards)

Rack Mount, 1 RU
